Key Features
- 6G-SDI Input/Output
- 4K HDMI Input/Output
- PCIe Interface
- Supports SD, HD, 2K, and 4K Formats

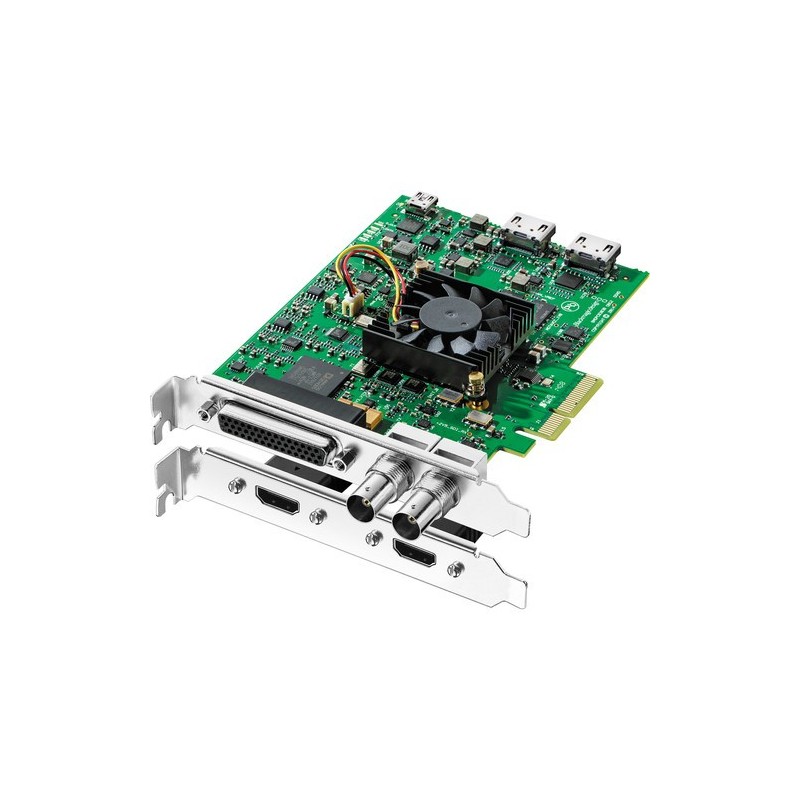

The DeckLink Studio 4K Capture & Playback Card from Blackmagic Design features 6G-SDI and 4K HDMI inputs/outputs which support resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the DeckLink Studio 4K offers a wide range of video and audio connections via an included breakout cable. These connections consist of analog component, S-Video, composite video, two channels of AES/EBU audio, and four channels of balanced analog audio. The card also provides RS-422 deck control, a reference input, and a down converted SD output.
