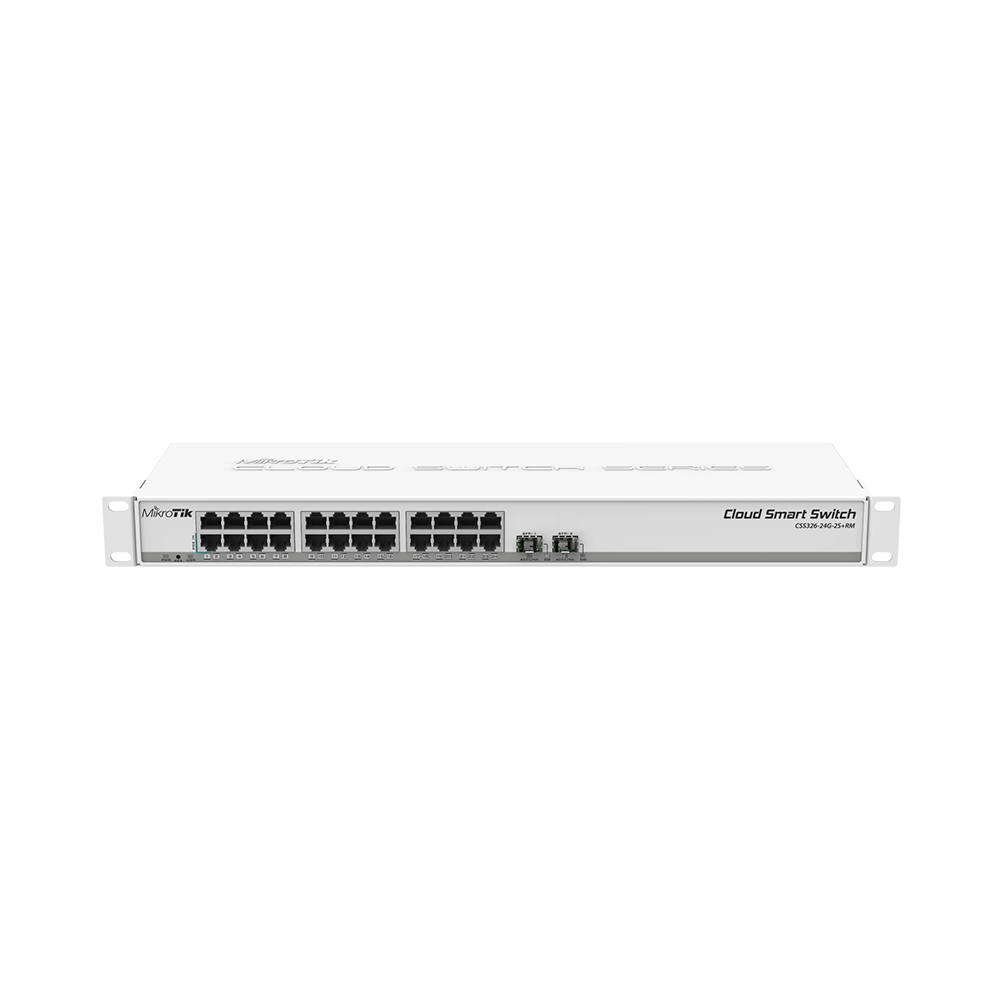

loud Smart Switch 326-24G-2S RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP ports in 1U rackmount case that provides wire speed connectivity with several new switching features.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP modules.
Product specifications
| Details |
| Product code |
CSS326-24G-2S RM |
| 10/100/1000 Ethernet ports |
24 |
| Dimensions |
440 x 144 x 44 mm |
| Max Power consumption |
19W |
| Operating System |
SwOS |
| PoE in |
Passive PoE |
| Power Jack |
1 |
| SFP ports |
2 |
| Storage size |
2 MB |
| Storage type |
FLASH |
| Supported input voltage |
10 V - 30 V |
| Tested ambient temperature |
-40°C .. 70°C |
